Treadwell Replacement Hardware Kit

Description

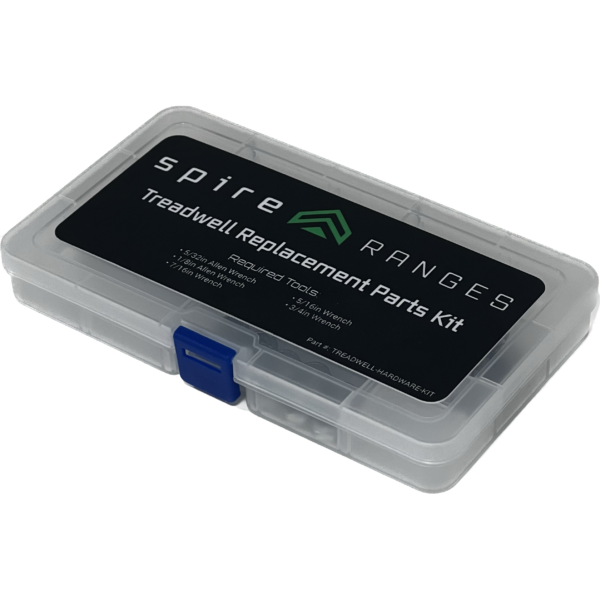

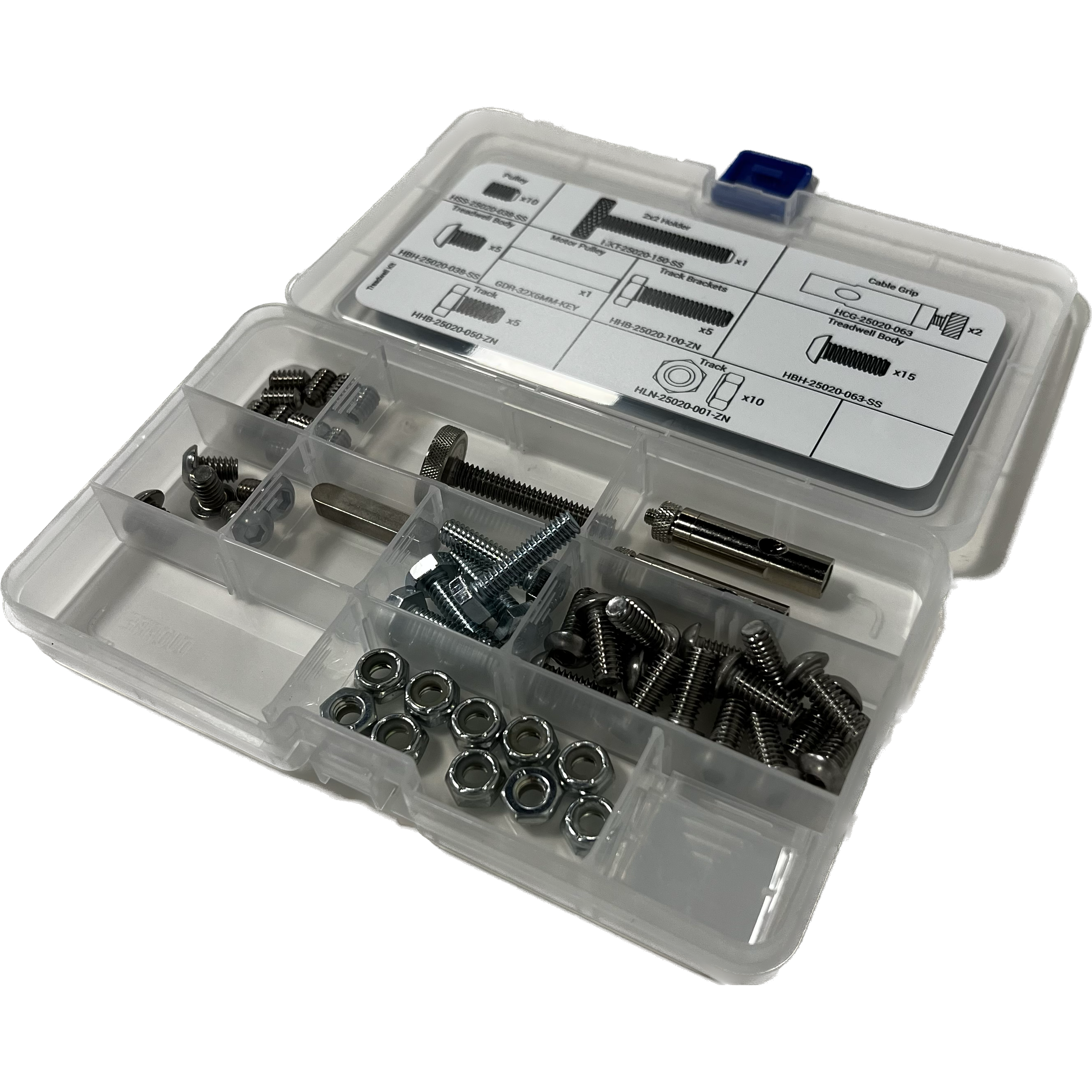

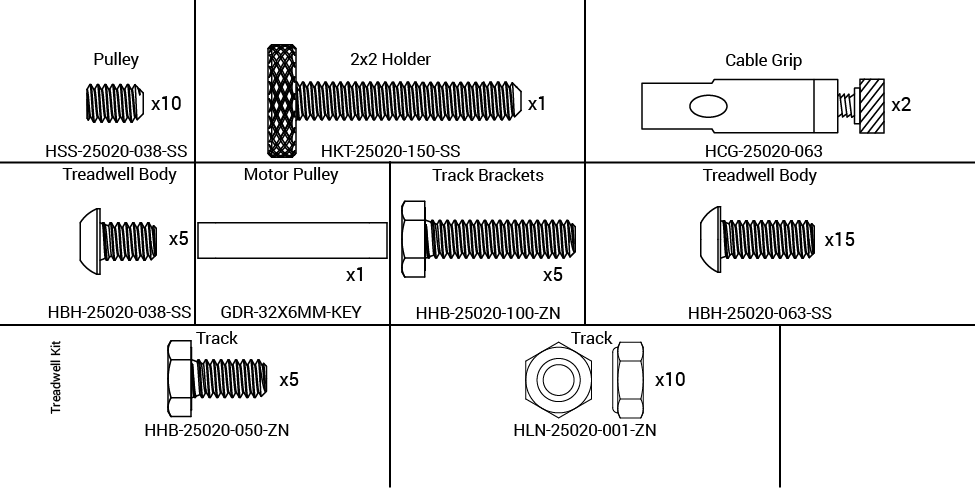

This kit is our recommended replacement kit for our Treadwell target systems. It includes various hardware that our customers often need as parts get damaged or lost. The front label gives a list of the tools needed for most maintenance repairs to help with servicing each unit. The inside label gives the quantity of each part, MPN, and a sample image of each part. The images on the inside label are generally printed to scale to help identify parts in case of them being mixed/misplaced.

The kit comes at a much better value than buying the individual replacement parts separately.

The kit includes:

• 5 – Button Heads – HBH-25020-038-SS
• 10 – Motor Pulley Set Screw – HSS-25020-038-SS
• 1 – Knurled-Head Thumb Screw – HKT-25020-150-SS
• 15 – Button Heads – HBH-25020-063-SS
• 20 – Track Bolt – HHB-25020-050-ZN
• 25 – Track Nut – HLN-25020-001-ZN
• 5 – Track Bracket Bolt – HHB-25020-100-ZN
• 1 – Motor Pulley Key – GDR-32X6MM-KEY
• 3 – Cable Grip – HCG-25020-063

* This kit was built to cover 10 target units for 2+ years.
